Bull bar SUMMIT MKII LC250 Winch Compatible; GX, GXL, Altitude
Design and Development
Summit MKII has eliminated front buffers and now has robot welds on the front face of the bar to highlight ARB's

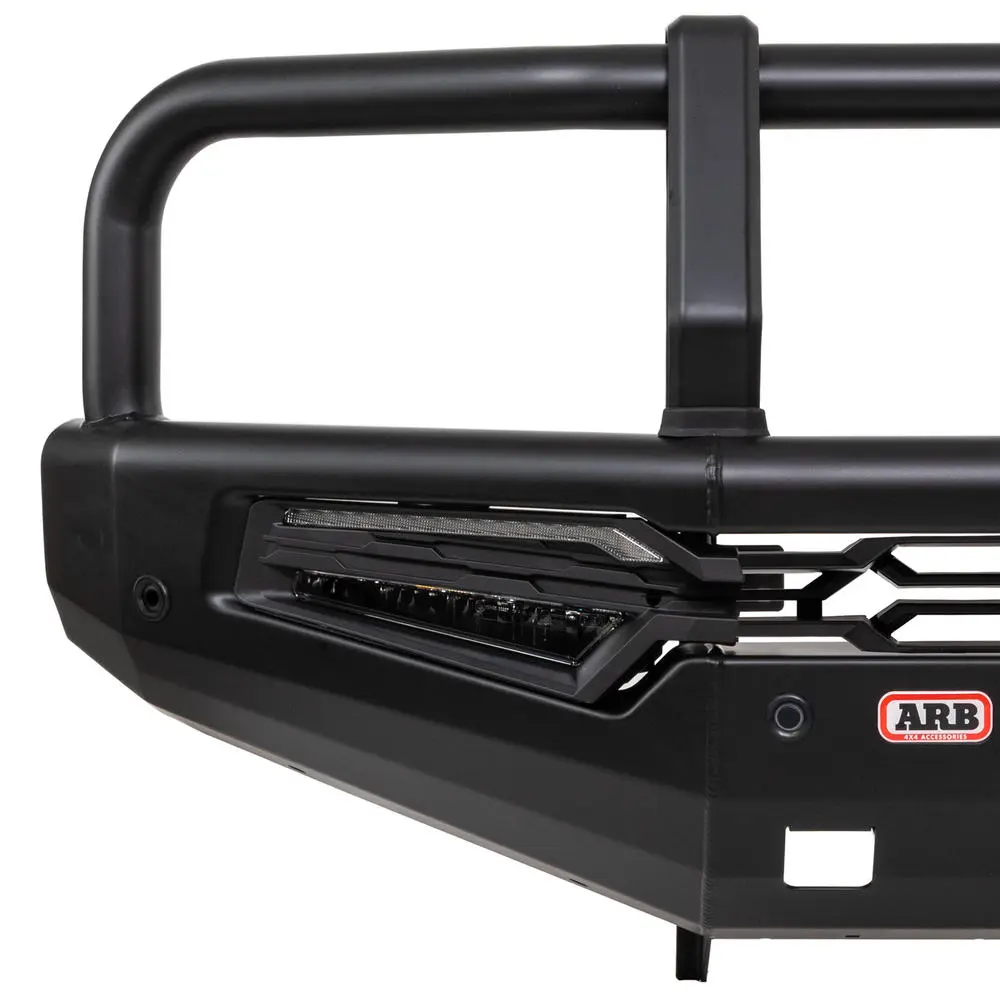

excellence in sheet metal fabrication. Fog light design has been significantly updated to include a plug and play
indicator / clearance light / Daytime Running Light and fog light within one complete unit for an integrated approach
to incorporate these requirements on modern vehicles.
FEATURES:
- Vehicle specific design
- Registered design of styling and design components.
- Durable steel construction for maximum protection.
- Incorporates ARB's renowned multi fold upswept and tapered wing design for optimum strength and approach
- angle.
- 30mm radius on wings and centre section.
- 60.3mm outer frames and centre cross tube.
- Engineered, air bag compatible mounting system secures to the chassis via high tensile bolts.
- Split pan design for maximum strength and airflow.
- Extensive protection panels on centre and either side.
- Pressed form top pan and aluminium (powder coated matt black) winch cover panel.
- Twin ARB Jack or Hi-Lift jack points located in the lower pan
- Two aerial brackets located on the outer frames.
- Will accommodate Warn, Magnum, Bushranger, Smittybilt low mount model electric winches up to 12,000lb.
- Provision to accommodate ARB Intensity and Solis LED's and a range of Bushranger lights.
- Includes ARB LED Fog light, LED Daytime Running Light and LED indicators and clearance lights
- Bar adds approximately 174mm to the overall length of the vehicle.
- Approximate weight of the bar, chassis mounts and fitting kit is 99kg. Approximately 15kg is removed from the
- vehicle for fitment of the bar.
- Metaprep primer for additional corrosion resistance.
- Finished in matt black powder coat with the option to colour code to vehicle colour.
